65mm Magnetic Dust Boot – STL Files FOR PHYSICAL PRODUCTION RESALE

Description

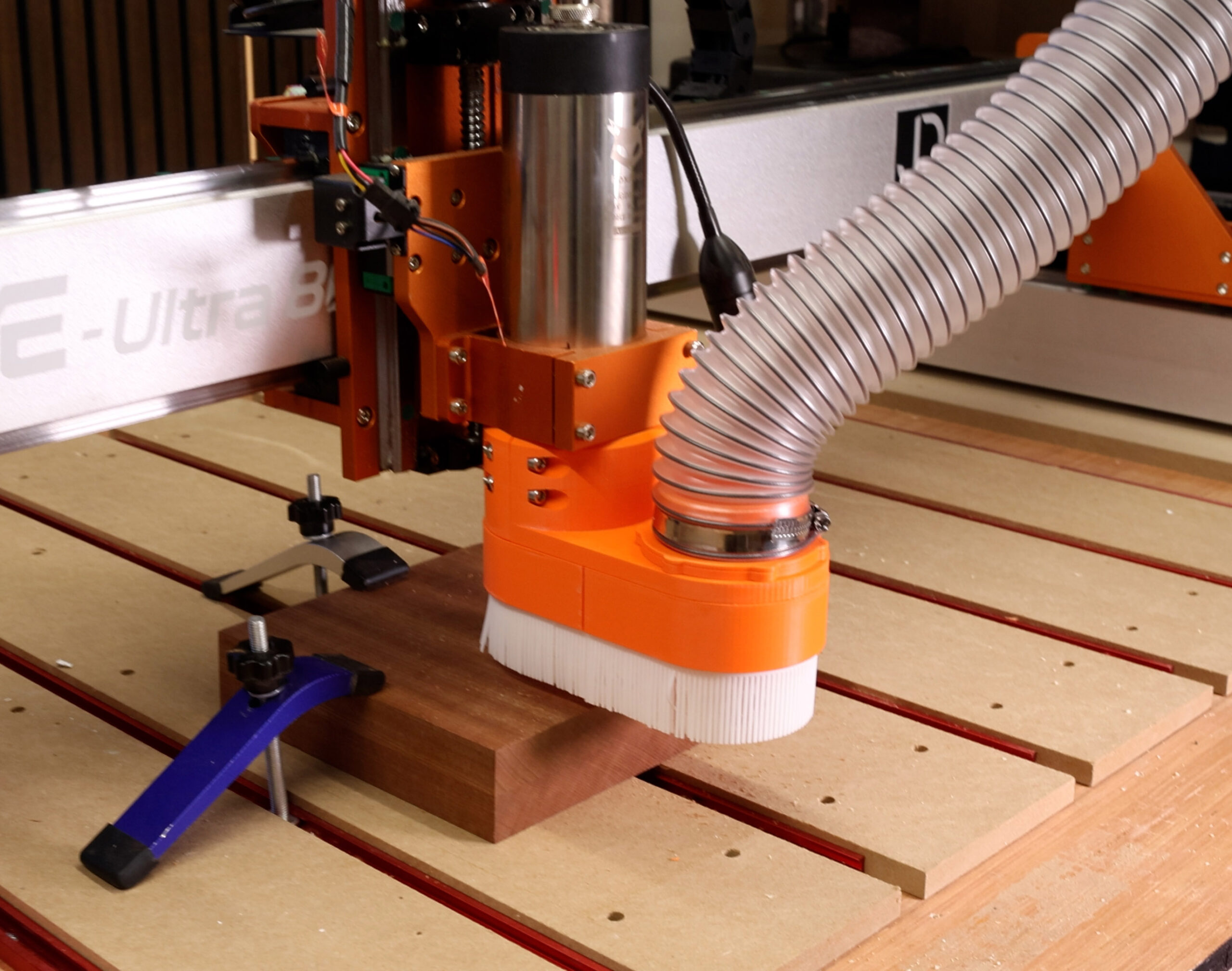

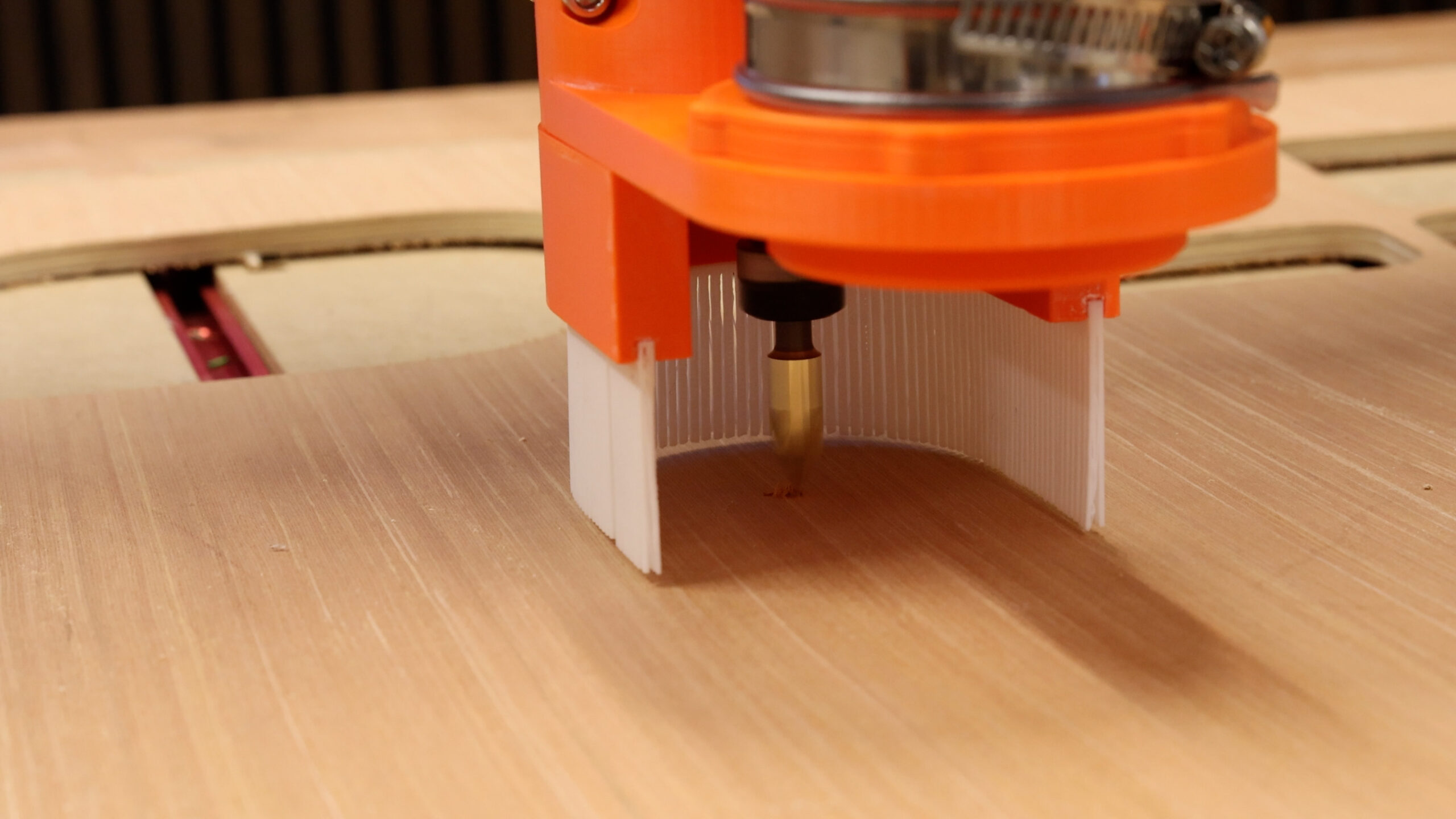

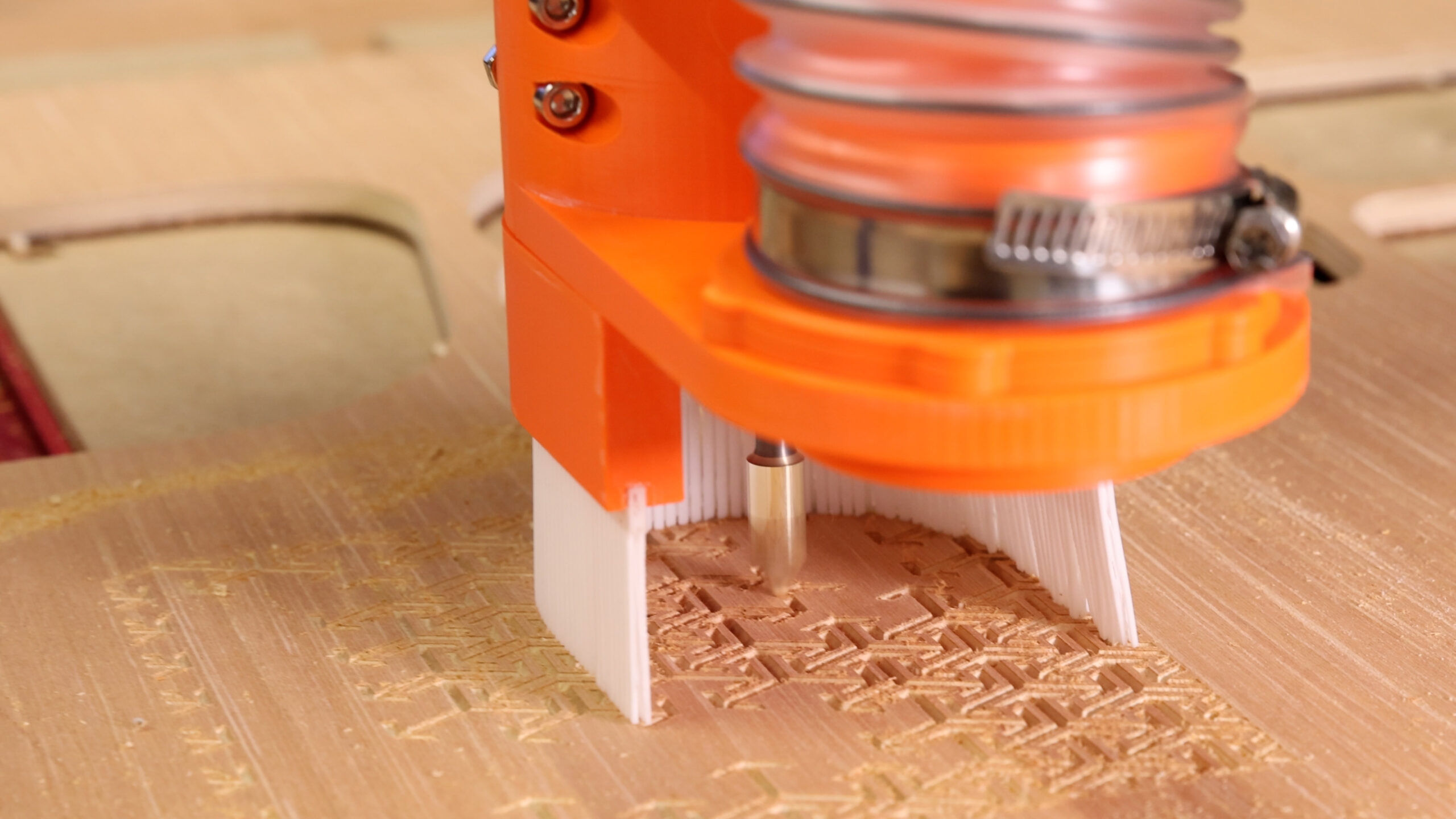

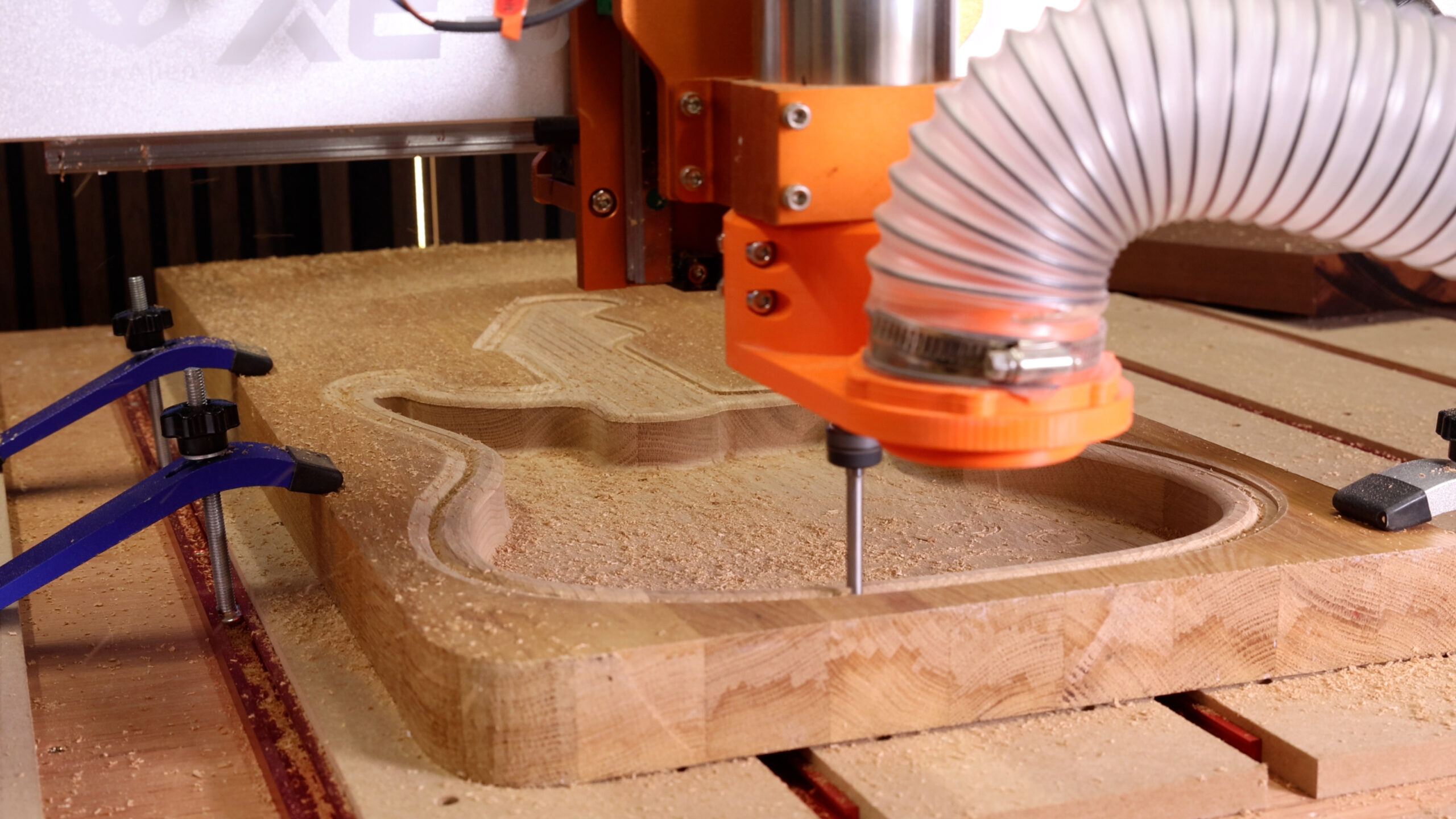

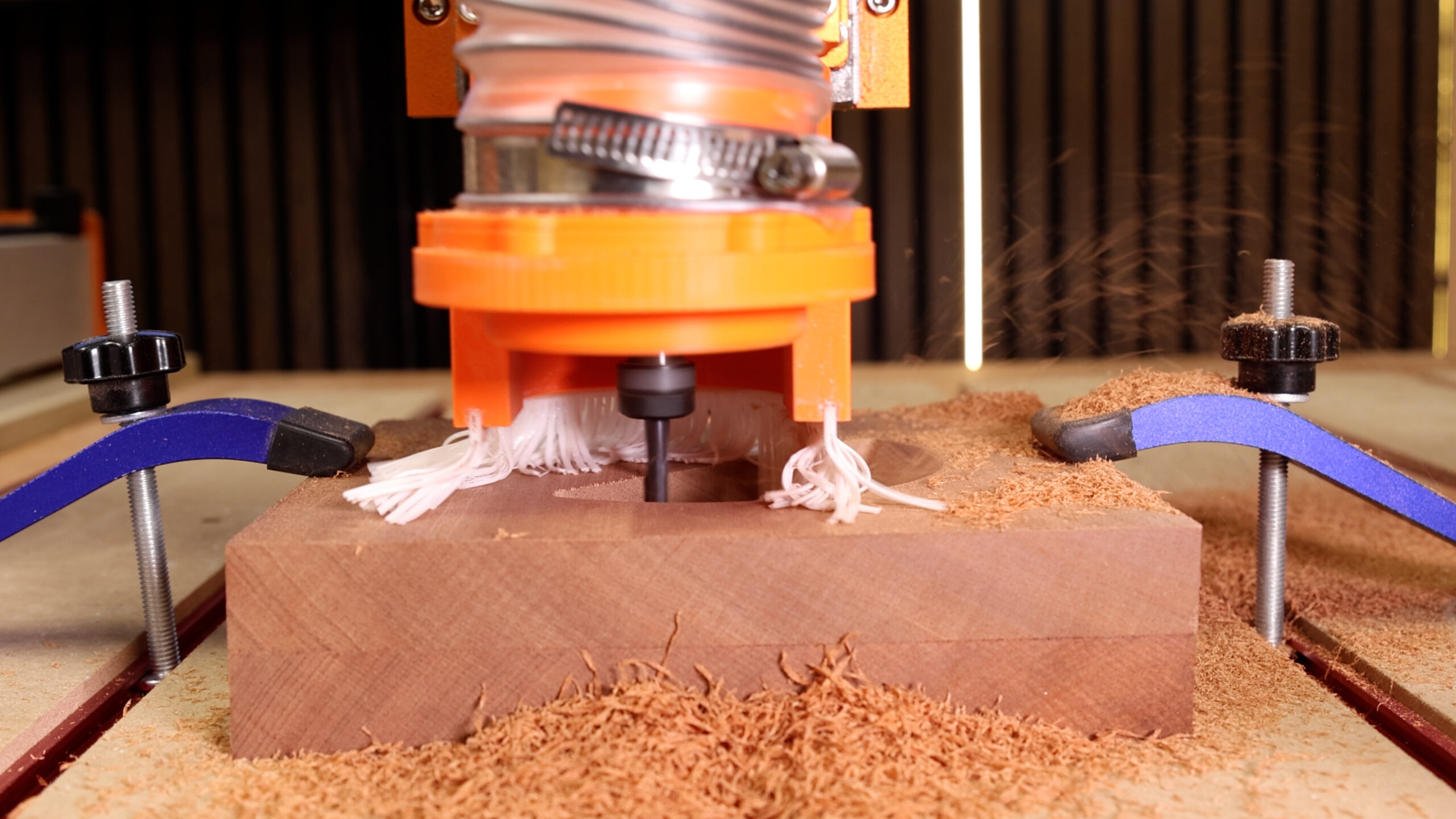

65mm Dust boot, with magnetic interchangeable bases for different depths and magnetic hose connection. Including a bristle file that you can print in TPU

Commercial Use License:
This digital 3D file is licensed for commercial use for the sale of physical objects produced from the file. You may sell physical items you personally manufacture using this file. However, you may not sell, share, distribute, sublicense, modify for redistribution, or otherwise transfer the digital file in any form, whether free or paid.

NOTE – this is for a 2.5in hose. 4in hose will be coming soon.

All the STL files you need to build this, all you need to add are:

6mm x 3mm magnets – https://amzn.to/3MLbCZh

2 x M5 Cap bolts with nuts.

Recommend printing in PTEG but can also be printed in PLA. Most printers can print this without supports, but if you add supports they should be minimal.

Parts included are:

1. Main top section that connects to the spindle
2. Deep base – split into 2 halves
3. Short base – split into 2 halves
4. Hose connector in full
5. Hose connector split in half (avoid supports)
6. Bristle long – will fit the full length of each base piece
7. Bristle short – half the size in case you have a smaller print bed.

WITH THEPURCHASE OF THIS PRODUCTION VERSION – YOU ARE GRANTED THE RIGHTS TO PRINT AND SELL THIS PRODUCT BUT NOT THE RESALE OF THE FILES THEMSELVES.
